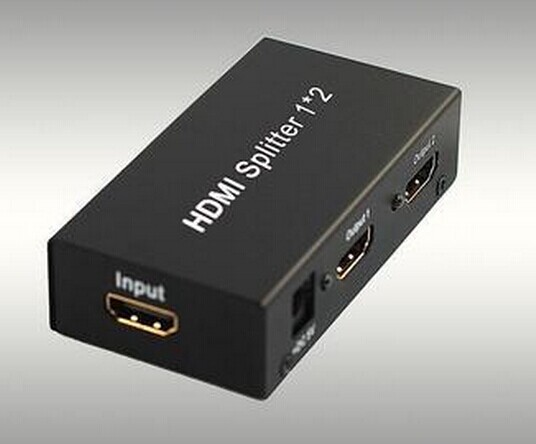

Overview

The EP9132/ep9142 is an DVI/HDMI splitter with integrated HDCP decryption/encryption engines and is compliant with HDMI Rev 1.3b and HDCP Rev 1.2 specifications. The EP9132 receives DVI/HDMI inputs, process HDCP decryption and encryption and
transmits the data to 2 DVI/HDMI ports. The chip uses an external EE to store the encrypted HDCP receiver/transmitter keys.

Feature

•     DVI Specification 1.0Compliant

•     HDMI Specification 1.3b Compliant

•     Integrated HDCP decryption/encryption engines which are compliant with HDCP Rev 1.2 specification

•     Encrypted HDCP keys store in external serial EE

•     Wide Frequency Range:25MHz - 225MHz

•     Support 12-bit Deep Color up to 1080p

•     Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports

•     Supports conversion of HDMI signaling to DVI signaling

•     Supports HDCP Repeater

•     Re-Sample architecture to filter input noise and recover the input data

•     Re-Drive architecture to regenerate clean TMDS signal

•     Cascadable to make more than 2 output ports

•     Single 3.3V CMOS Design

•     80-Pin LQFP (Pb-Free)
